DINO HAY STEAMER

With our HAY STEAMER, we are setting new standards in hay steaming.

Benefit from our many years of experience in the development and manufacture of electric steam generators: the highest quality, reliable technology, and well-thought-out details ensure optimal results—for the best feed for your horses.

Functions

Ansicht links

Funktion auswählen …

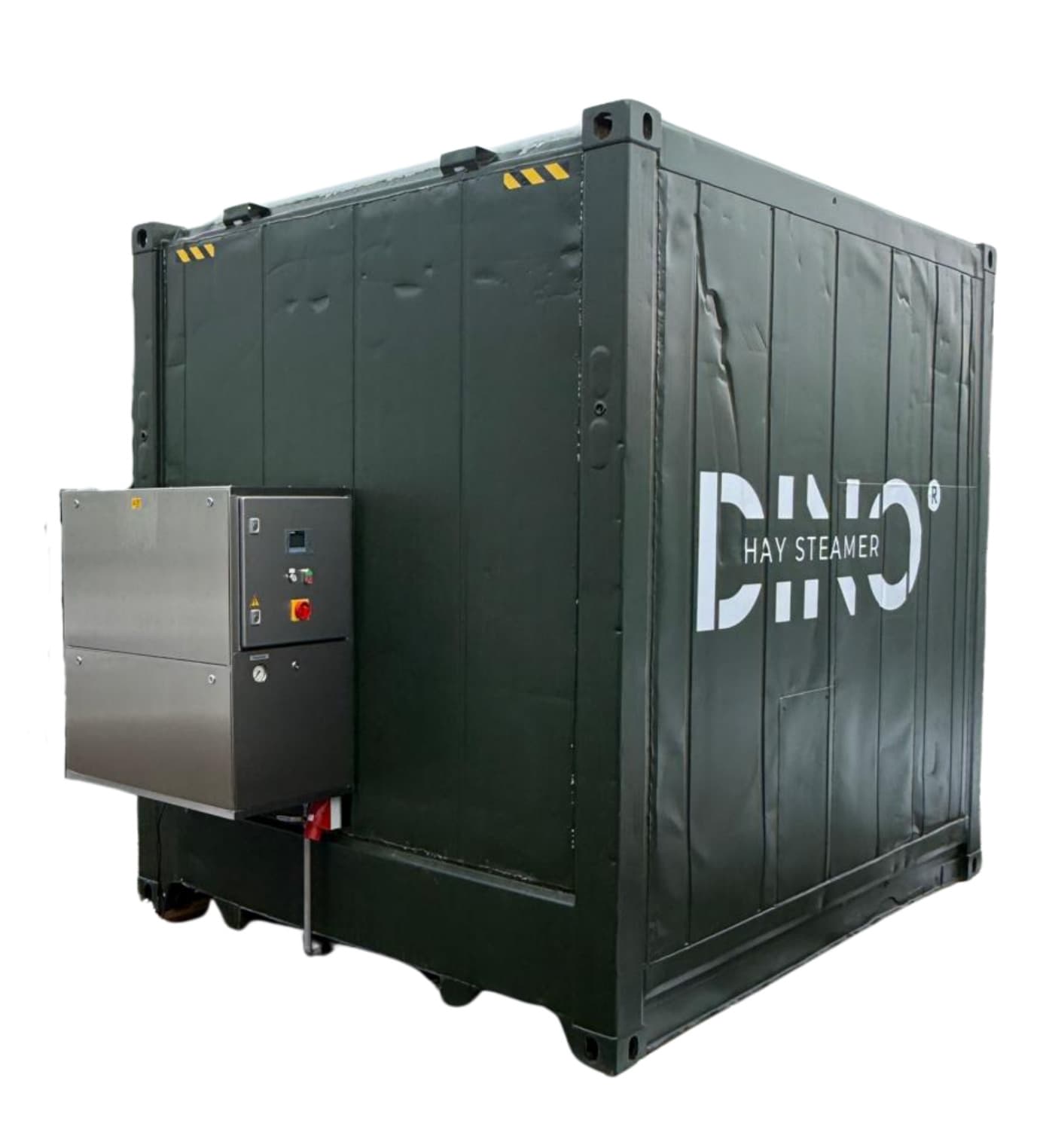

Ansicht rechts

Scientifically validated hygienized hay

Hay often contains moulds, yeasts and bacteria that can strain a horse’s respiratory system. To verify how effective the steaming process with our DINO HAY STEAMER is, we commissioned an independent laboratory analysis using heavily contaminated hay.

Unsteamed Steamed
Aerobic bacteria 1.000.000 CFU/g <2.000 CFU/g
Moulds >15.000.000 CFU/g <100 CFU/g
Yeasts 1.800 CFU/g <100 CFU/g

* CFU/g = Colony-forming units per gram

The results show complete hygienization of the hay. While the sample of untreated hay was classified by the laboratory as spoiled, the steamed hay is clearly below the guideline values for hygienized feed (DLG, VDLUFA).

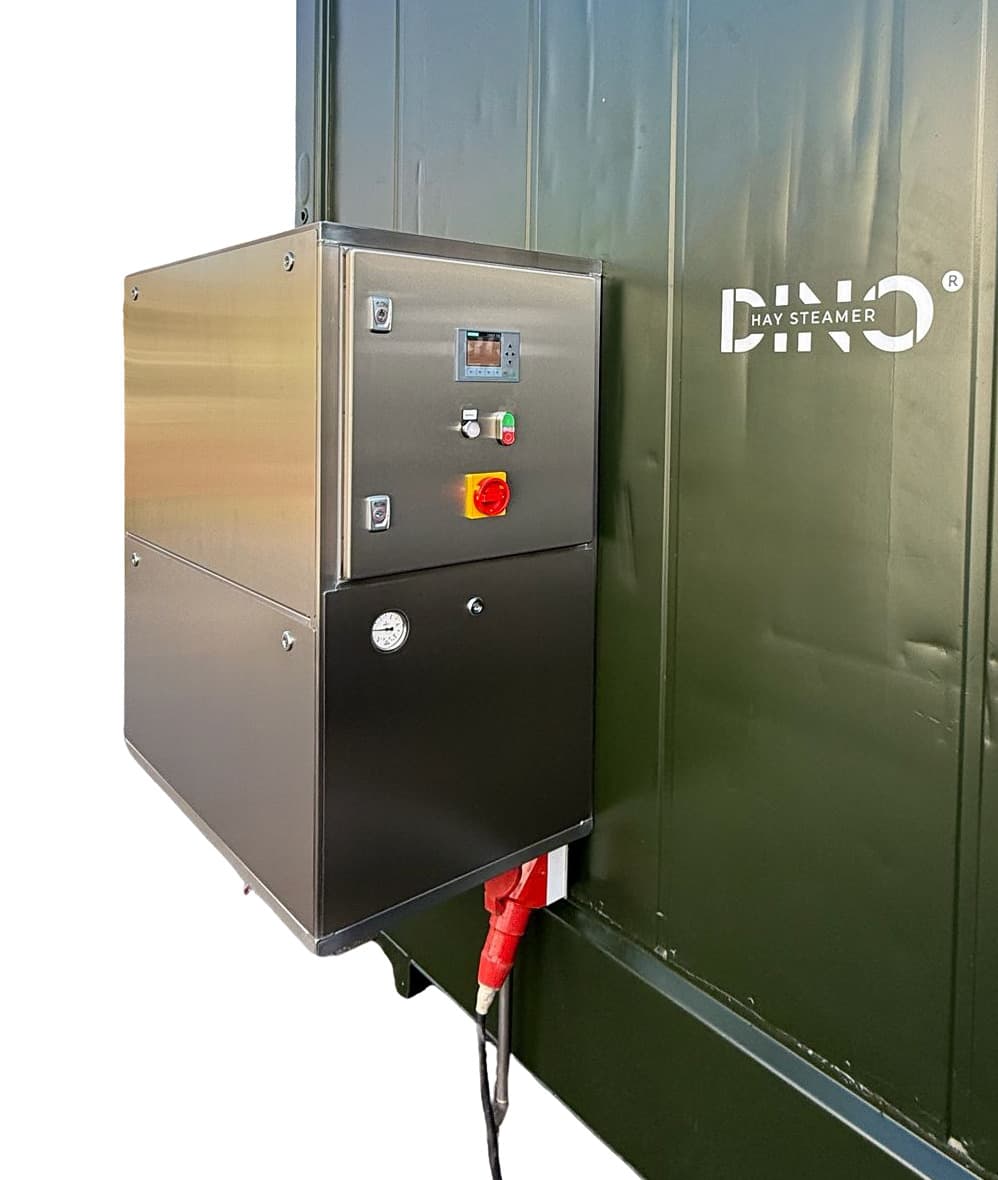

NDD18-3 electric steam generator

Performance

NDD18-3 electric steam generator

  • Steam output (kg/hour): 24,0
  • Working pressure (barg, adjustable): 1,0–3,0
  • Max. operating pressure (barg): 3,8
  • Max. steam temperature (°C): 144,0
  • Number of heating elements: 4 × 4,5 kW
  • Operating voltage (V/ph/Hz): 400 / 3+PE / 50
  • Heating capacity (kW): 18,0
  • Total connected load (kW): 18,5
  • Total control voltage (V DC): 24
  • Total rated current (A): 27,0
  • Fuse on site (A): 32
  • Connection plug: CEE 32A

Water consumption

  • Steam generator: max. 24 liters/hour
  • Regeneration process water softener: 60 liters after 20 operating hours

Power consumption

  • Maximum: 18.5 kW/hour

Abmessungen des Containers

External dimensions

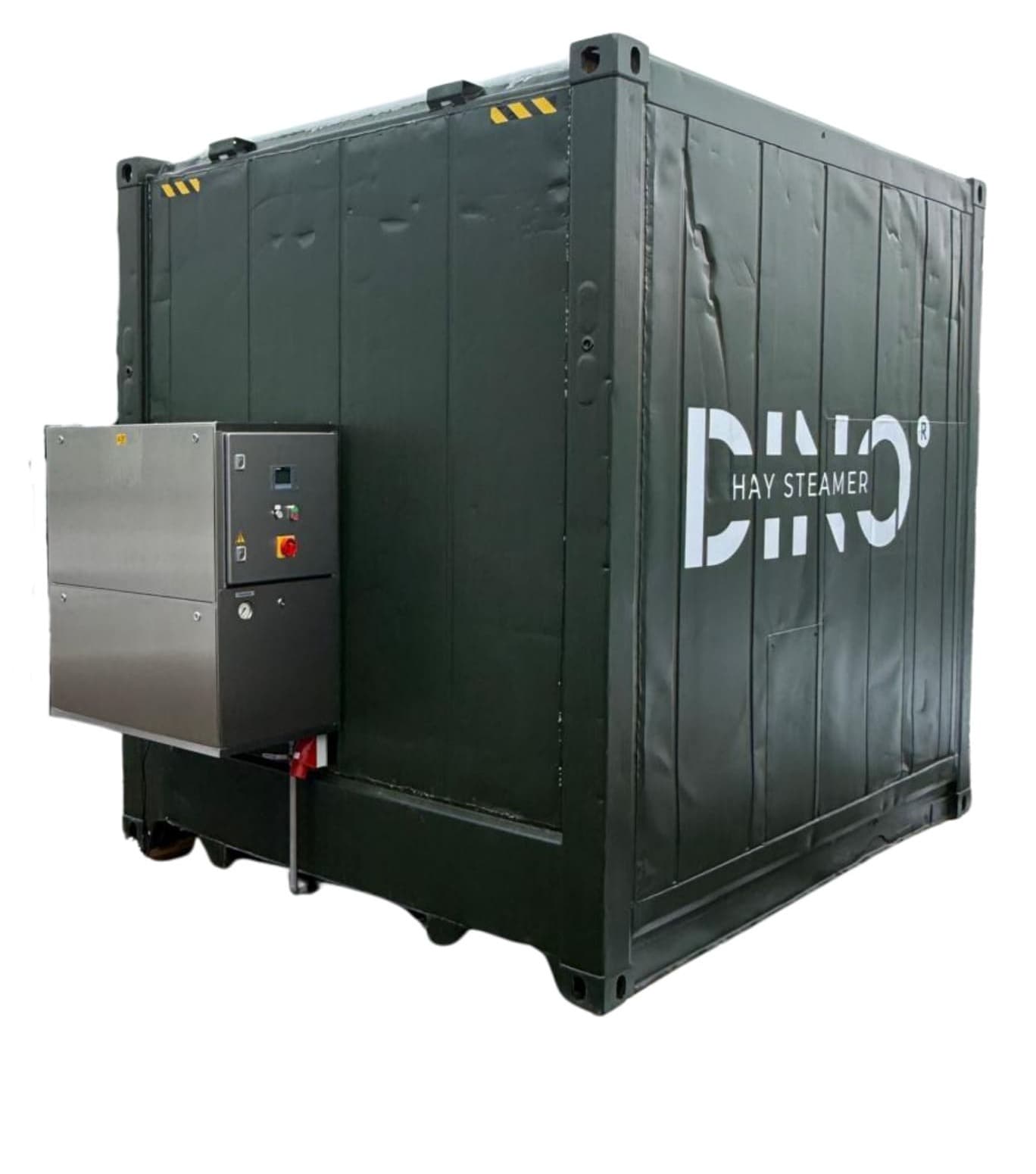

Container dimensions
Außenhöhe
200 cm
Außentiefe
245 cm
Gesamtlänge ohne Dampferzeuger
305 cm
Gesamtlänge mit Dampferzeuger
365 cm
Internal dimensions
Internal dimensions steamer image
Innenhöhe
257 cm
Innenbreite
229 cm
Innentiefe
280 cm

Advantages of the DINO HAY STEAMER

Customer inquiries

With the DINO HAY STEAMER, you can effectively steam both hay and straw.

Both round and square bales up to a length of 2.5 m can be steamed. Up to 4 steam lances are available for this purpose, which can be used simultaneously. The stainless steel hay pad can also be adjusted flexibly.

Ideally, the hay should be used immediately — its steamed quality remains stable for 24 hours. With proper storage, however, it can still be safely fed 3 to 5 days after steaming. If this period is exceeded, simply steam it again during the next steaming cycle — don’t throw it away!

Expert tip for daily stable management: Steam in the morning → Feed in portions in the morning and evening

The DINO HAY STEAMER has an integrated water softening system. This means you can connect the appliance to your drinking water supply without any problems. We do not recommend using well water or similar.

The DINO HAY STEAMER only requires a fresh water supply (connection to your mains water supply) and a high-voltage power connection with a connected load of 19 kW. This corresponds to a CEE 32A plug.

Yes, that is possible. We would be happy to design the system for a lower connected load. However, under these circumstances, the simultaneous use of 4 steam lances can no longer be guaranteed, or the steaming time will increase.

Yes, the system has an integrated freeze protection. This ensures that the system is not damaged by frost.

Steamed hay can be fed immediately after the steaming process is complete. It is still very warm at first, but cools down quickly. Many horses actually enjoy it, especially in the winter months when the hay is still slightly warm.
