Simple operation
You use the built-in timer to set the steaming time — after that the steam generator switches off automatically.
Hay Steamer
HAY STEAMER
The complete solution for your horses. Hygienised hay all year round – fast, efficient and easy to use.
- Steam output
- —kg/h
- Pressure max.
- —bar(g)
- Heating output
- —kW
Available for purchase / leasing only
View 3D model
Note: 3D model (GLB) — the first download may take a few seconds depending on your connection.
Technical data
The HAY STEAMER is available only in the 18 kW output class with a 32 A CEE connection. If you have a lower connected load available, please do get in touch — we can also supply the unit in a throttled version. Please note that a lower output class may extend the steaming time required.
HAY STEAMER active - Steam output 24.0 kg/h
- Pressure max. 3.0 bar(g)
- Heating output 18 kW
HAY STEAMER active
- Steam output 24.0 kg/h
- Pressure max. 3.0 bar(g)
- Heating output 18 kW
Performance
- Steam output(kg/h)
- 24.0
- Working pressure min.(bar(g))
- 1.0
- Working pressure max.(bar(g))
- 3.0
- Max. operating pressure(bar(g))
- 3.8
- Max. steam temperature(°C)
- 144
Electrical ratings
- Operating voltage(V)
- 400
- Frequency(Hz)
- 50
- Phases
- 3+PE
- Heating output(kW)
- 18.0
- Number of heating elements
- 4 × 4,5 kW
- Total connected load(kW)
- 18.5
- Total control voltage(V DC)
- 24
- Total rated current(A)
- 27
- Fusing (site-supplied)(A)
- 32
- Connector plug
- CEE 32A
Dimensions
- Width(mm)
- 2,450
- Height(mm)
- 2,900
- Length(mm)
- 3,050
Water consumption
- Steam generator
- max. 24 litres / hr
- Regeneration process, softening system
- 60 litres after 20 operating hours
Power consumption
- Maximum
- 18.5 kW/hr

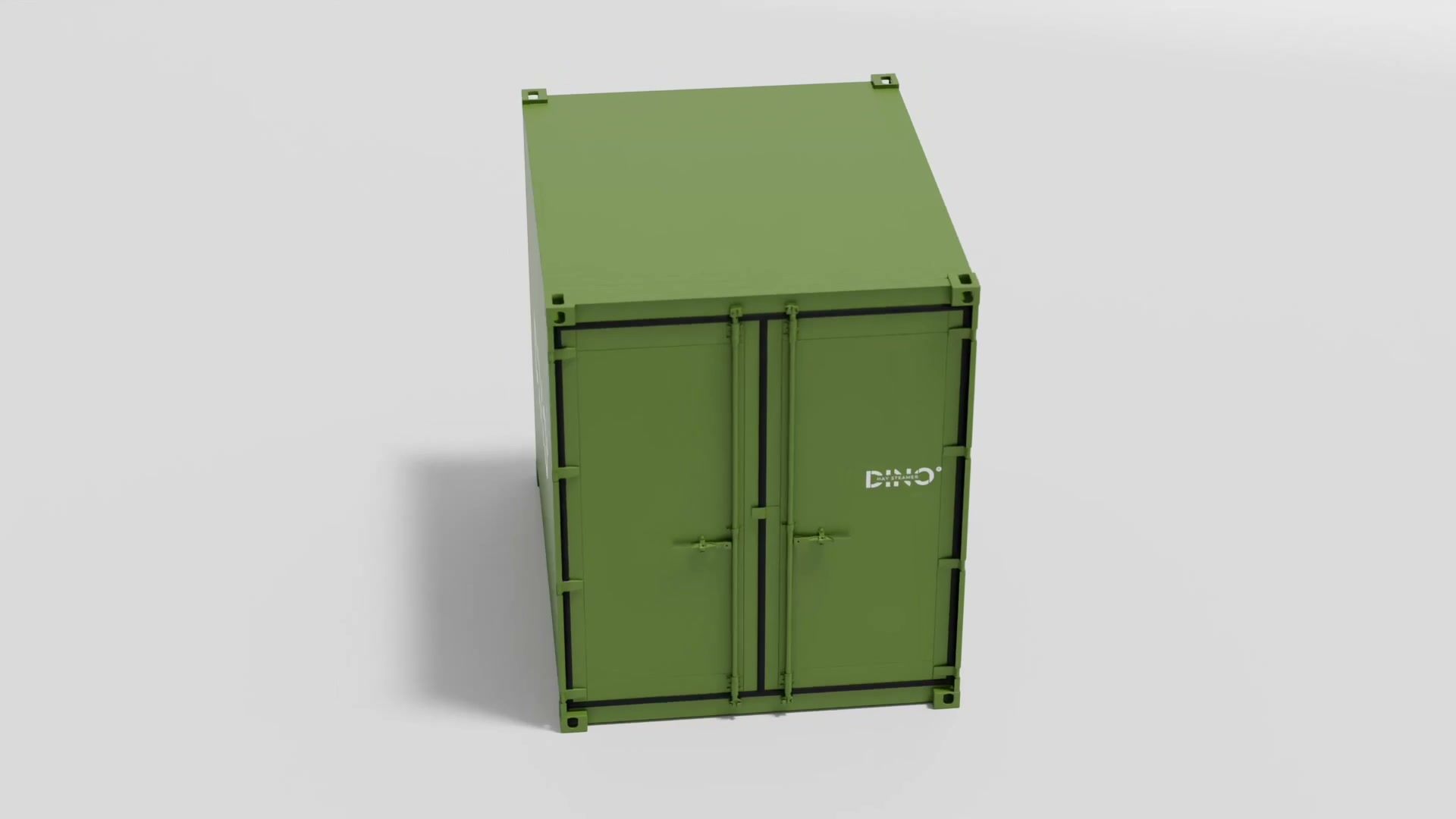

Our Hay Steamer in operation
This is how simple a steaming run is
Switch on the unit and let the steam generator heat up, load the bale, set the steaming time on the timer, start — done. Our 3D animation shows the whole process step by step and just how straightforward everyday operation is.
Thought through down to the last detail
Proven steam and heating technology in a robust, insulated container. Tap a function on the unit and the matching detail zooms in alongside it.

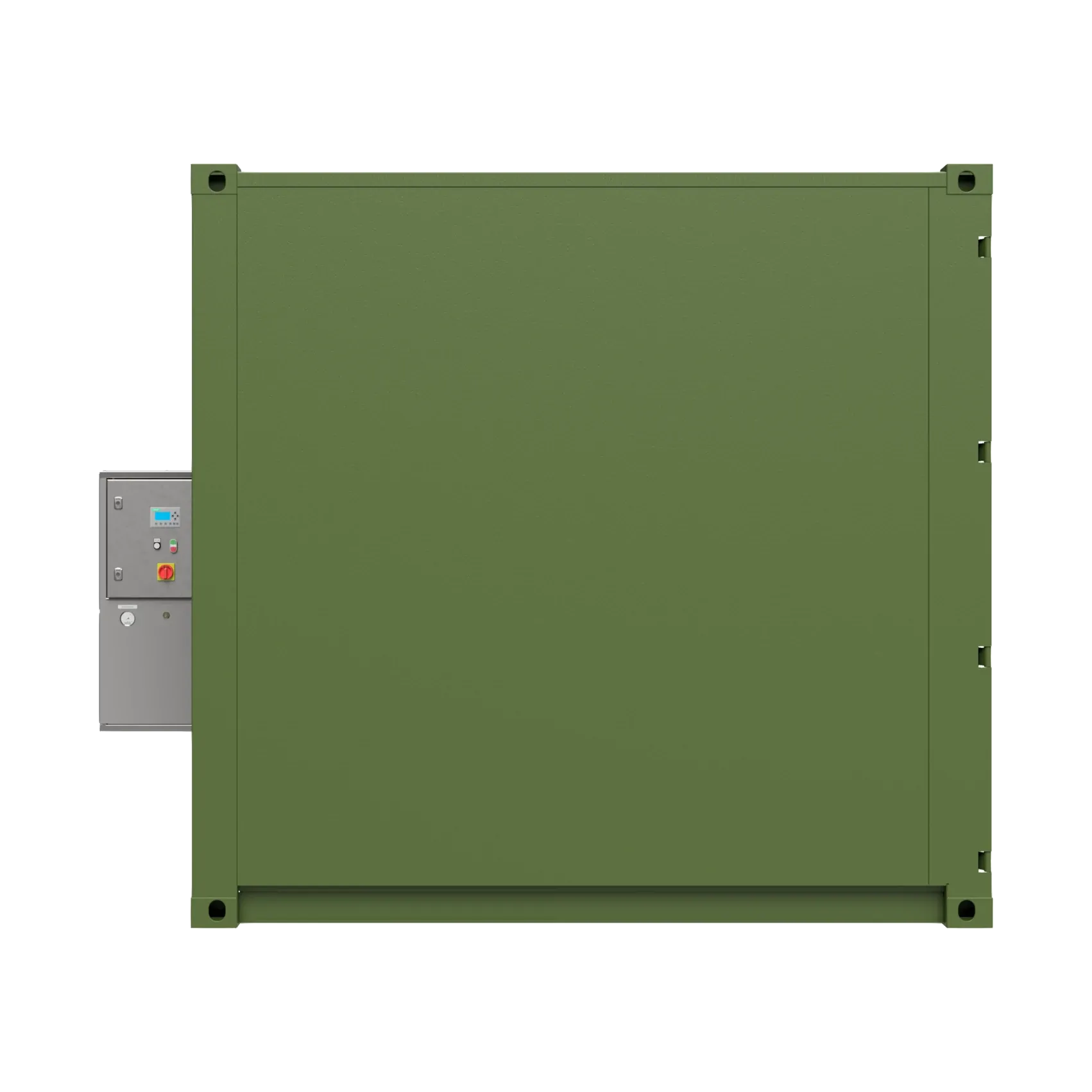

Controls & technology
High durability
The integrated water softening prevents limescale deposits in the generator, pipework and steam lances — even with hard tap water.

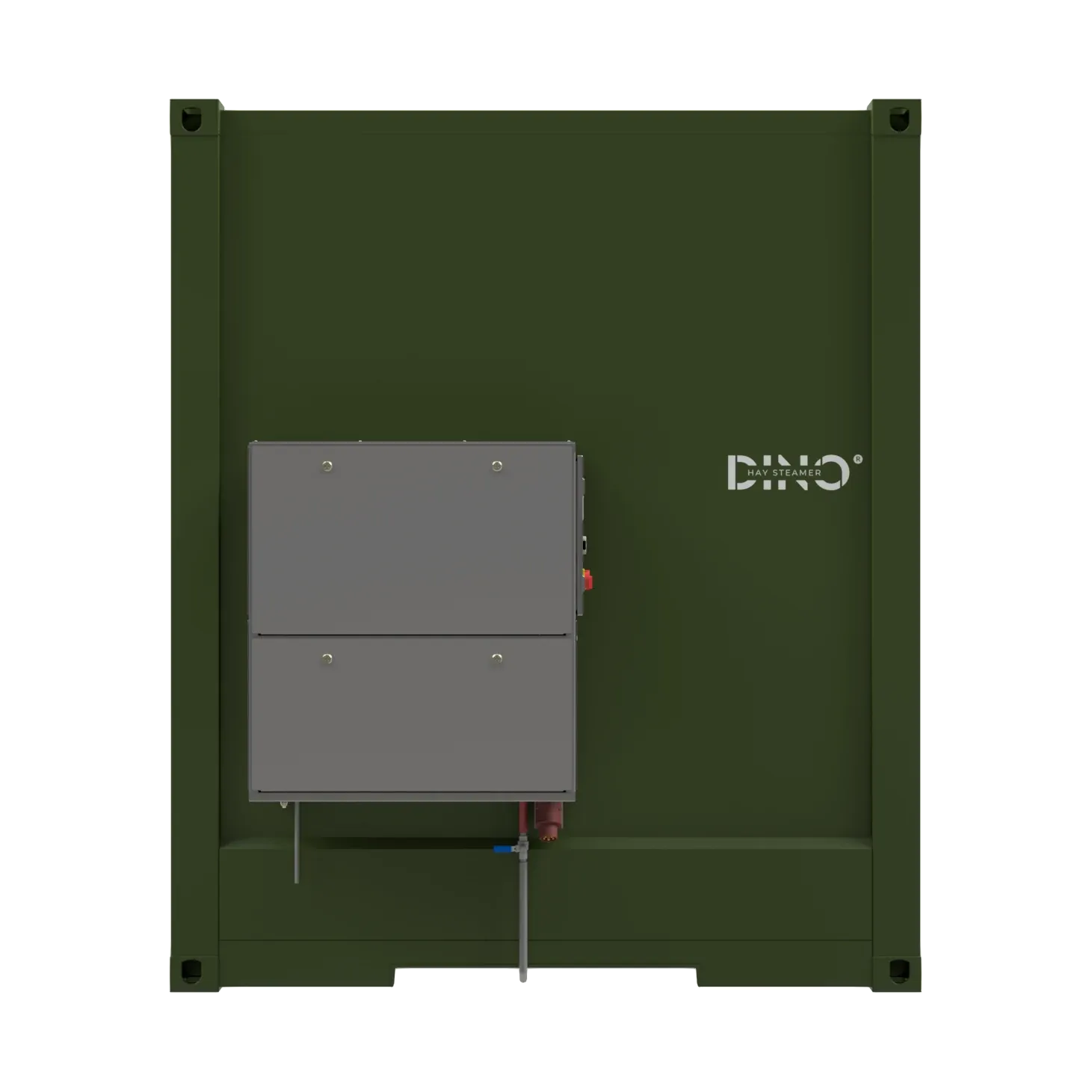

Insulated cladding hood
The steam generator and softening system sit under an insulated stainless steel hood — protected from cold and weather, for year-round operation.

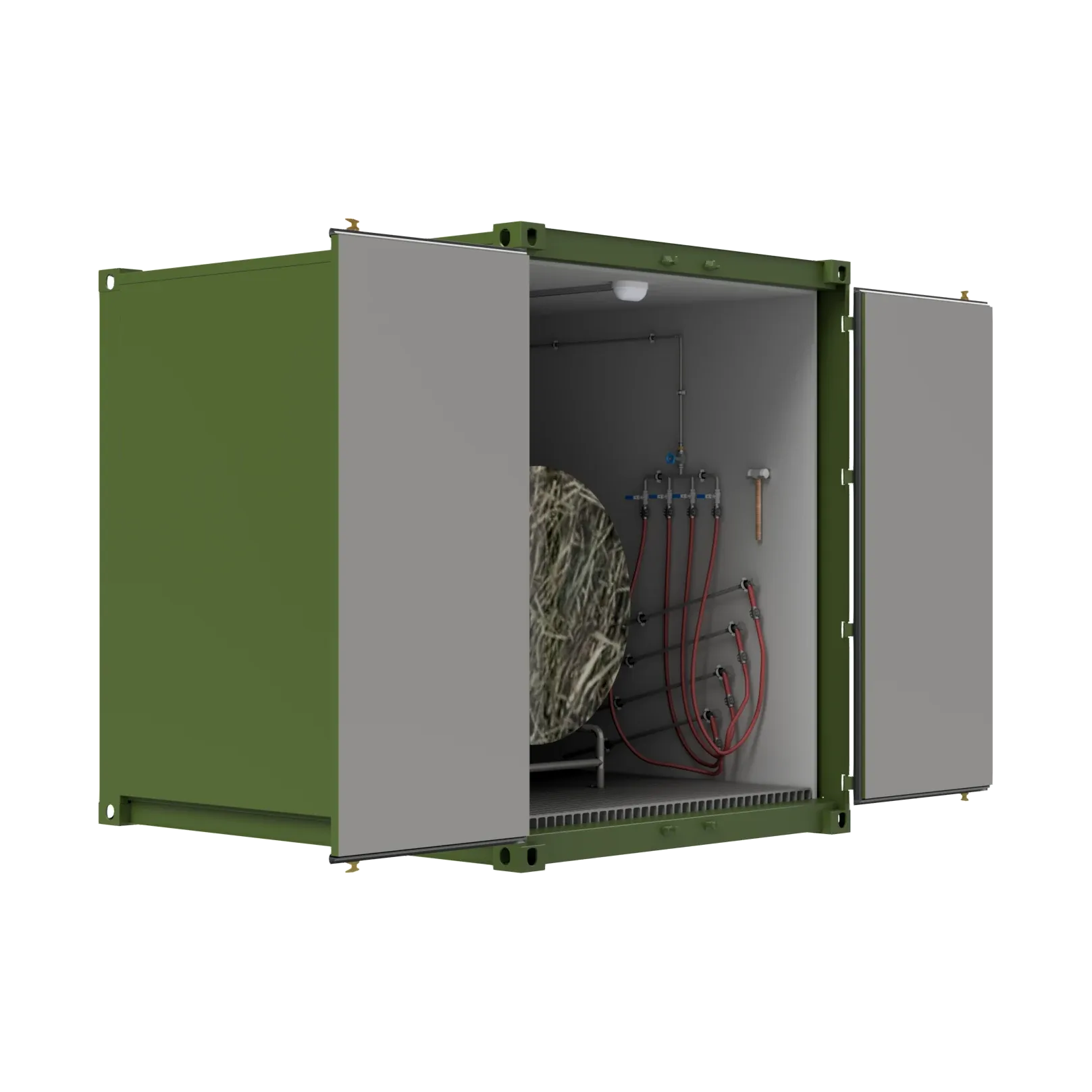

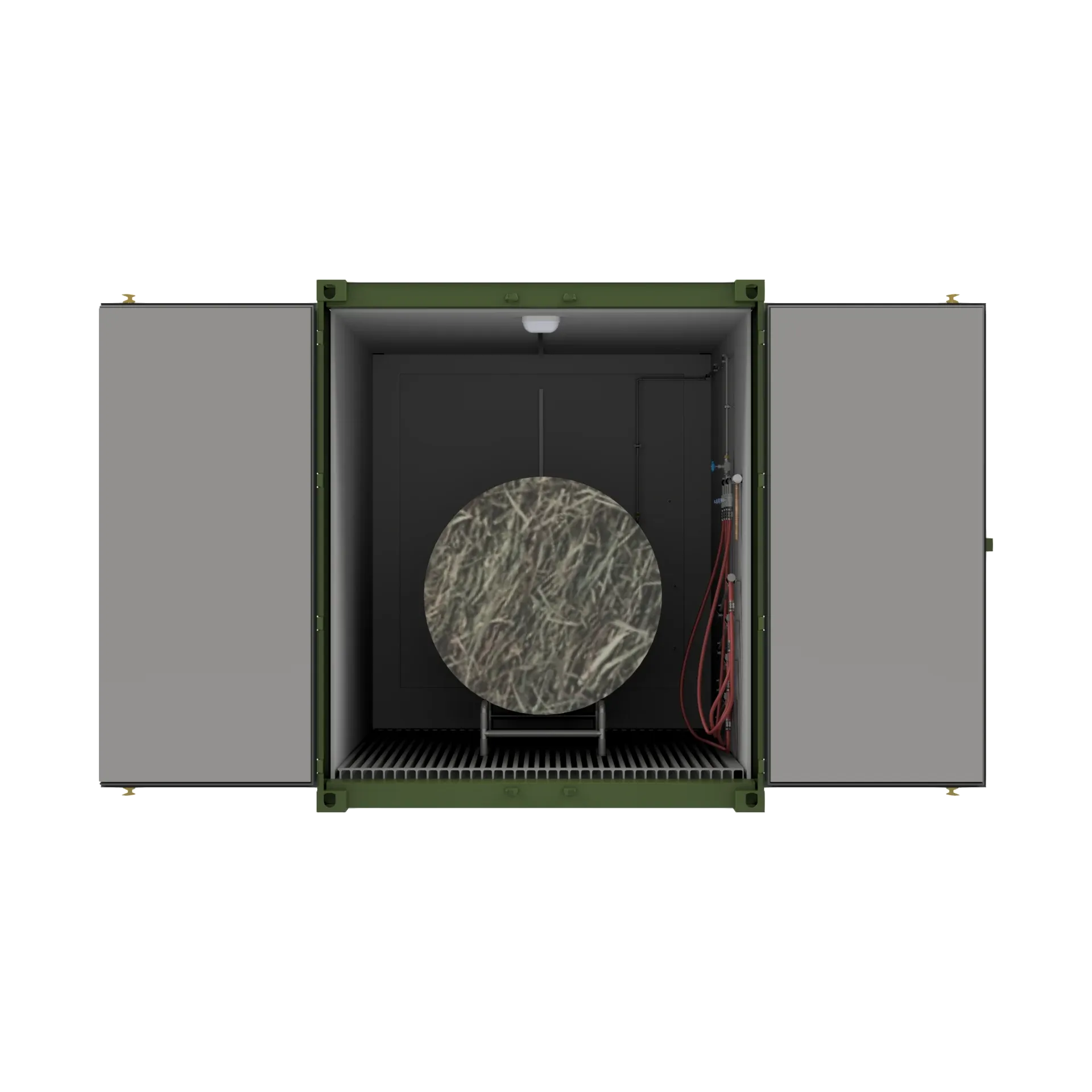

Interior & steam lances
Interior lighting
The ceiling light in the container makes use possible even in poor visibility.
Insulated exterior walls
The fully insulated container heats up faster and saves energy — particularly in the colder months.
Stainless steel lining
Fully lined inside with aluminium or stainless steel: hygienic and rust-free.
4 steam lances
Four separately switchable steam lances steam even larger square bales evenly.
Lances with striking face
The striking face on the lance head makes it easier to push them into densely pressed bales. A soft-faced mallet is included.
Frequently asked questions about the DINO HAY STEAMER
Which type of forage is the steaming suitable for?
With the DINO HAY STEAMER you can effectively steam both hay and straw.
Which types of hay and straw bales can be steamed with the DINO HAY STEAMER?
Both round bales and square bales up to a length of 2.5m can be steamed. Up to 4 steam lances are available for this and can be used at the same time. The stainless steel hay support can also be adjusted flexibly.
Which water quality should be used?
The DINO HAY STEAMER has an integrated water softening system. You can therefore connect the system to your drinking water line without any problem. We advise against using well water or similar.
What do I need in order to use the DINO HAY STEAMER on my farm?
The DINO HAY STEAMER only requires a fresh water supply line (connection to your mains water network) and a three-phase power connection with a connected load of 19 kW. This corresponds to a CEE 32A connector plug.
Can I also connect the DINO HAY STEAMER via a CEE 16A connector plug?
Yes, that is possible. We are happy to design the system for a lower connected load as well. Under these circumstances, however, the use of 4 steam lances at the same time can no longer be guaranteed, or the steaming time increases.
Can the DINO HAY STEAMER also stand outdoors during the winter months?
Yes, the system has an integrated frost monitor. This ensures that no frost damage occurs to the system.
Non-binding consultation on DINO HAY STEAMER
Our specialists in Bremen configure the system to match your requirements and advise you on the accessories you need.
